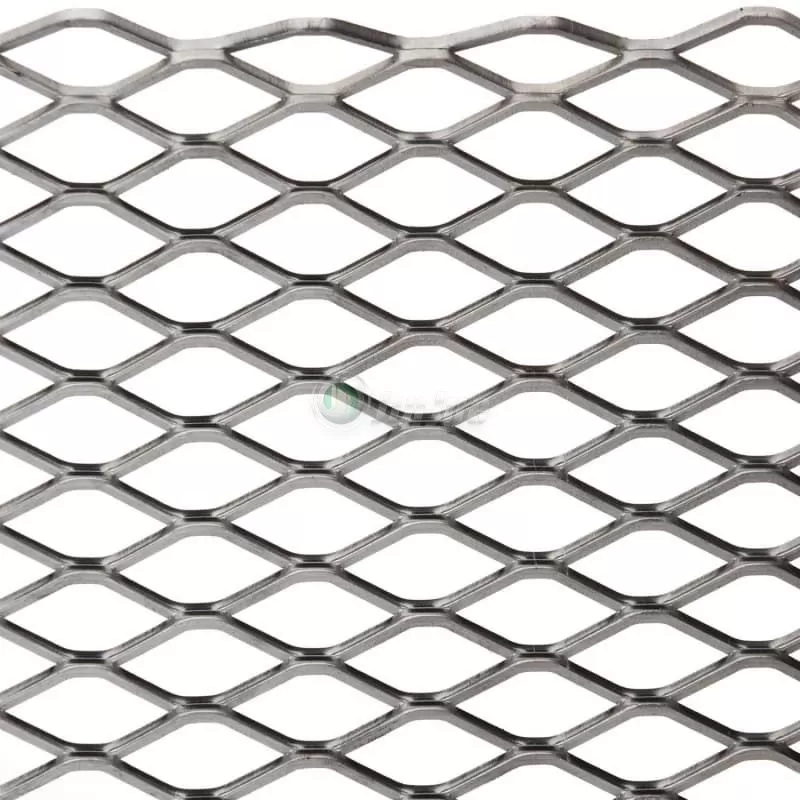

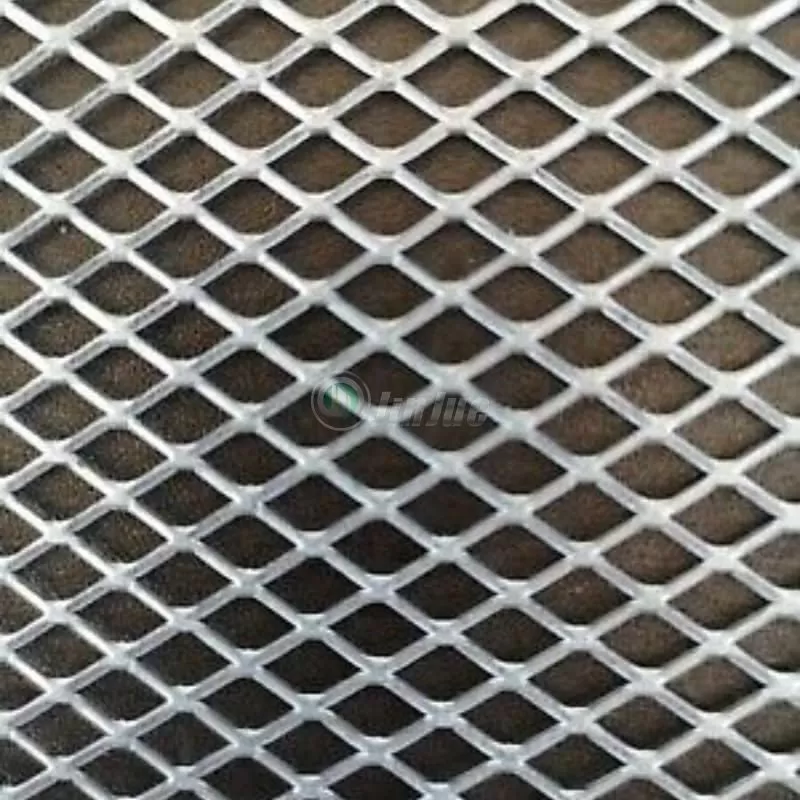

Expanded Wire Mesh, commonly known as steel plate mesh, stretched mesh, and expanded metal mesh in Chinese, is a mesh metal plate made by punching, shearing, and stretching a whole metal plate. It is not like a woven mesh that is made of metal wires, but is formed into a continuous mesh structure by stretching after slotting. There are no welding or weaving points, and the structure is stronger and more integrated.
🛠️ Process features:
The raw material is a whole steel plate, without seams or breakpoints
It is cut and stretched into diamond, hexagonal and other meshes by special machinery
One-piece molding, high strength and impact resistance
📐 Common technical parameters:
Project Parameter range
Material Low carbon steel, stainless steel, aluminum, galvanized sheet, copper, etc.
Hole type Diamond (standard), hexagonal, fish scale hole, crocodile mouth hole, etc.
Aperture (SWD × LWD) Short Way × Long Way, such as: 5mm×10mm, 25mm×50mm
Thickness 0.3mm – 8.0mm (plate thickness)
Expanded width Conventional 1m, 1.2m, 1.5m, can also be customized
Surface treatment Spray painting, electrogalvanizing, hot dip galvanizing, anodizing (aluminum), etc.
⭐ Expanded Mesh vs Wire Mesh Comparison
Project Expanded Mesh (Steel Plate Mesh) Woven/Welded Wire Mesh (Wire Mesh)
Material source Whole metal plate Single wire weaving/welding
Structural strength Strong, good integrity Relatively weak
Process characteristics Stretch forming, no breakpoints Weaving or spot welding connection
Application focus Load bearing, protection, beauty Filtration, screening, ventilation
🏗️ Typical application scenarios:
Application field Usage description
Architectural decoration Ceiling, curtain wall, guardrail, metal background wall
Safety protection Machine protection cover, workshop isolation net, foot pedal
Industrial equipment Filter element support layer, battery support net, ventilation hood
Metallurgical mine Screening plate, quarry screen, vibrating screen plate
Traffic facilities Highway guardrail, bridge tread, anti-skid walkway
✅ Product advantages summary:
Integrated structure, high strength, impact resistance;
Good ventilation and light transmittance, light weight;
Strong anti-slip performance, suitable for foot pedals;
Beautiful and elegant, suitable for decoration;
Customizable cutting, bending, curling and other deep processing
