Razor Wire Fence
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Product Specifications
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-12 |  | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 |  | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 |  | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |  | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 |  | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 |  | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |  | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
We support customization of various models.
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type |
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) Standard materials are either galvanized or stainless steel. Standard packages products are shown in the tables above, special specifications available on request. | ||||
We support customization of various models.
Product Advantage
Feature
1. Aesthetic Appeal: Features sharp and beautiful blades, presenting an attractive appearance.
2. Cost - effectiveness: Offers an economical solution in terms of cost.
3. Practicality: Can be used in conjunction with various fences like chain link, welded mesh, and razor mesh fences, ensuring high practicality.
4. Superior Protection: Constructed from hot - dipped galvanized steel or stainless steel, providing better protection and fencing strength.
5. Safety - oriented Design: Designed to ensure safe fencing.
6. Easy Installation: Comes with a simple and convenient installation process.
7. Weather Resistance: Highly resistant to weathering, capable of withstanding diverse environmental conditions.

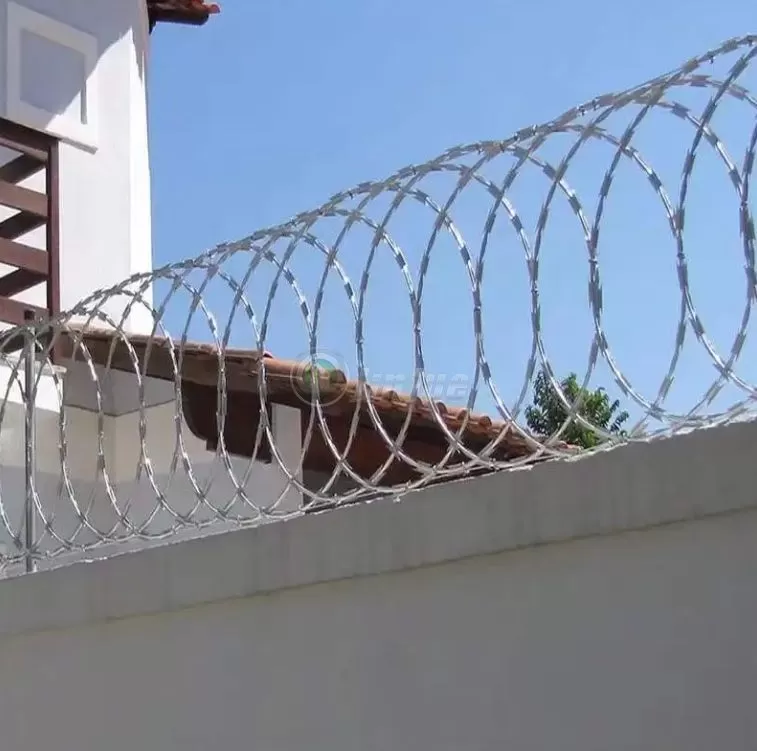

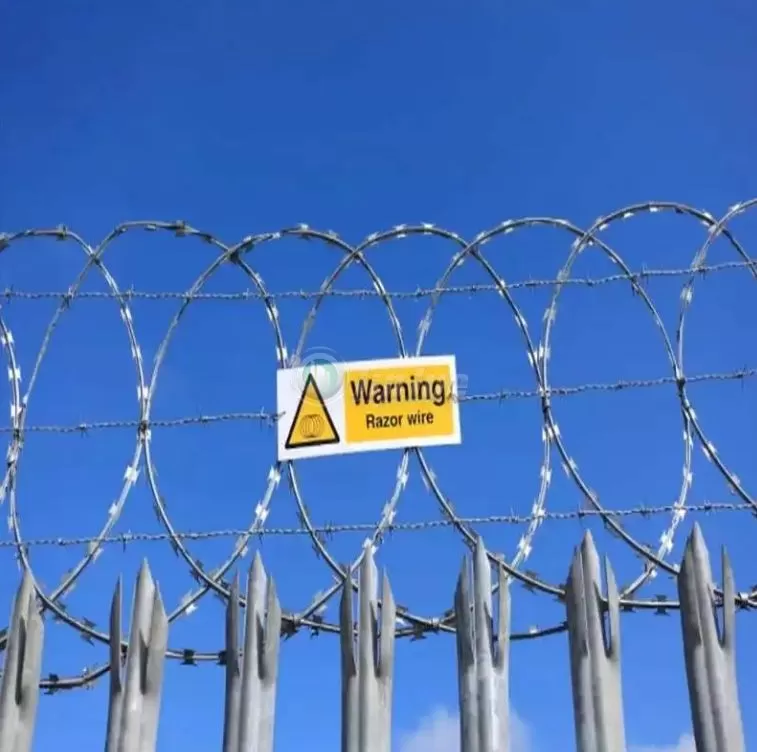

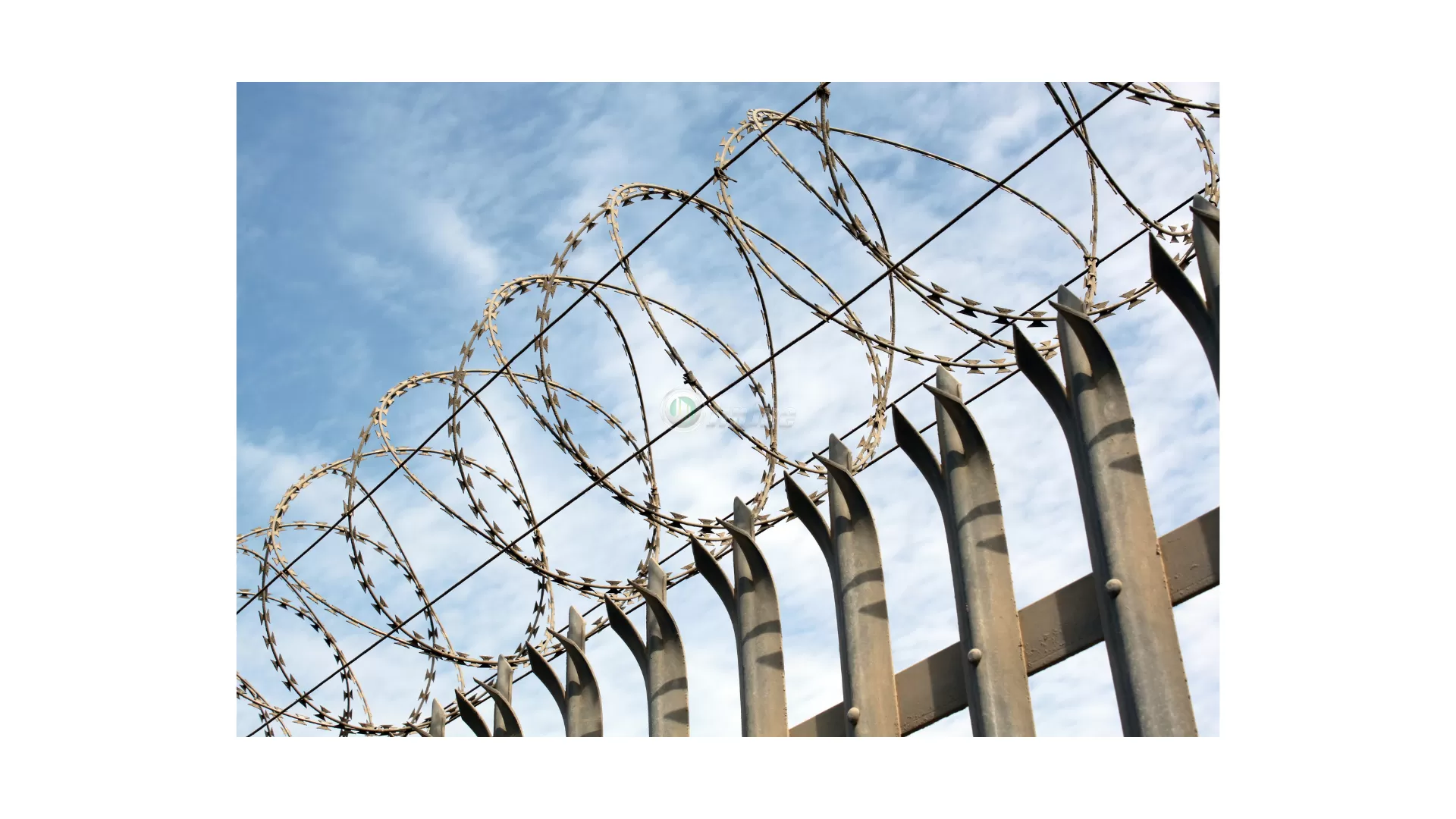

Application
Our Services
1. Professional Consultation
- Our team of experts is well - versed in razor barbed wire products. Whether you have questions about material properties, installation methods, or suitability for specific applications, we offer in - depth professional consultations. We take the time to understand your needs and provide accurate, tailored advice to help you make the best purchasing decisions.
2. Customization
- Recognizing that different projects may have unique requirements, we provide customization services. We can adjust specifications such as thickness, diameter, barb length, width, and spacing according to your specific needs. Additionally, we can customize packaging and branding to meet your business or project - specific demands.
3. Efficient Logistics and Delivery
- We have established a reliable logistics network. Once your order is confirmed, we ensure timely processing and dispatch. We work with trusted carriers to guarantee that your razor barbed wire products are delivered to your designated location safely and on schedule. You'll be kept informed of the shipping status throughout the process.
4. Installation Support
- To assist with a smooth installation process, we offer comprehensive installation support. This includes providing detailed installation guides, offering on - call technical assistance, and, if required, arranging for on - site installation guidance by our experienced technicians. We aim to help you install the razor barbed wire correctly and efficiently.
5. After - sales Service
- Our commitment doesn't end with the sale. We provide a robust after - sales service. If you encounter any issues with the product quality, such as damage during transportation or manufacturing defects, we will promptly handle returns, exchanges, or repairs. We also welcome your feedback and suggestions to continuously improve our products and services.

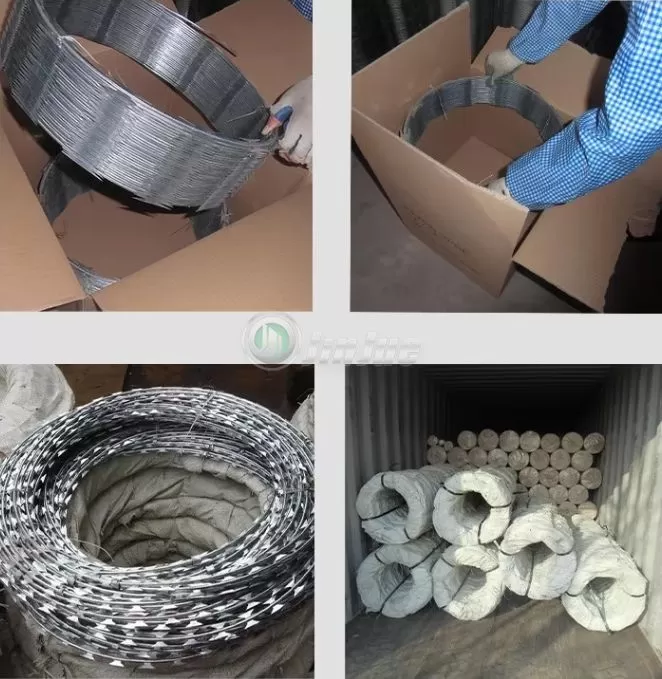

Package
